Product

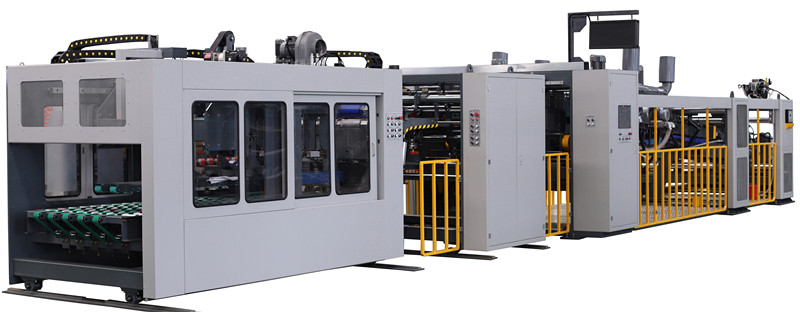

inline folding gluing machine

Automatic corrugated box inline folder gluer mainly application in food corrugated carton box, fruit carton box, industry carton box and other various corrugated packaging application. It is with high speed folding gluing production, PLC program system and order memory system application.

Model	G300-1224
Max gluing speed	300pcs/min
Max feeding size	2400*1200mm
Min gluing feeding size	740*350mm
Corrugated board	3ply, 5ply, 7ply
Total power	66kw
Voltage	380V, 50HZ, 3phase
Weight	20tons
Dimension	1360042002900mm

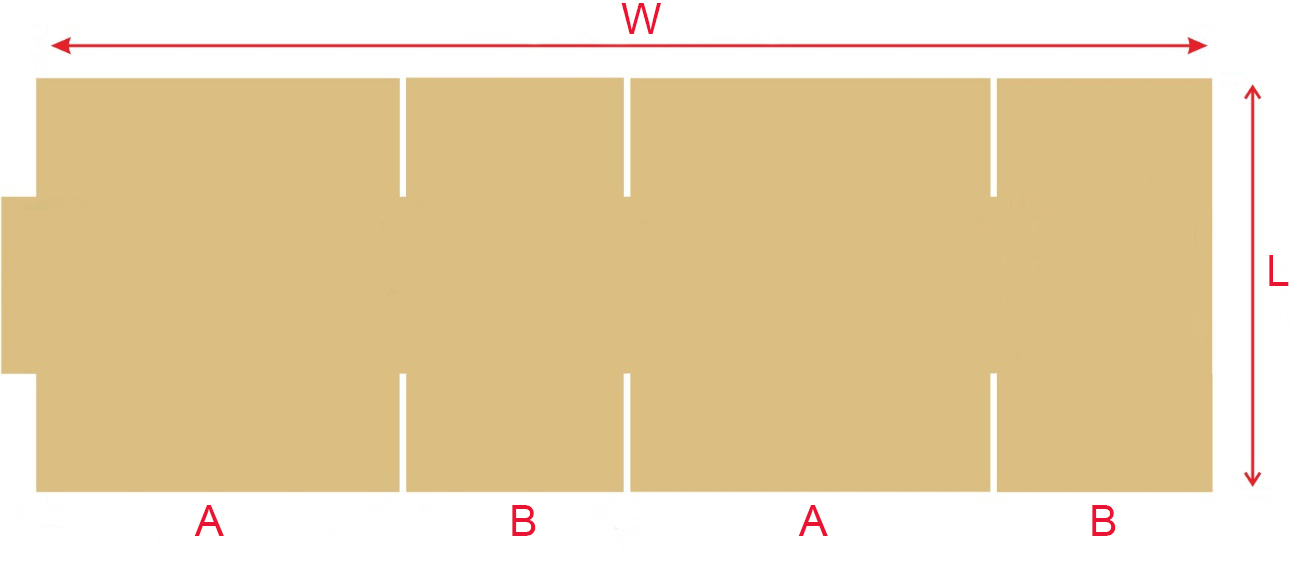

Item		Max	Min
Folding gluing	W	2500	750
	L	1200	300
	A	850	250
	B	600	130

Inline Folder Gluer inline folding gluing machine flexo folder gluer casemaker flexo printer slotter inline folder gluer
